Dental3DPlugin

Description:

This OsiriX's plugin has been designed for dentists. It extends both the OsiriX's 3D Curved MPR Viewer and the 3D Surface Rendering Viewer to allow the user to plan Dental Implant Treatments and to 3D print custom Implant Surgical Drill Guides.

- Implant templates (polygon ROI) drawing
- Tooth/Mucosa Supported and Bone Supported Drill Guide real time drawing with .STL Export for 3D Printing
- 3D Teeth database for Virtual Wax-up
- Automatic Implant Diameter
- Automatic Panoramic Curve
- Nerve drawing
- 3D Surface Rendering showing implants, nerves, transverse section position plan and panoramic curve as 3D objects
- STL Import in order to add optical scanned wax-up models and/or study models to the 3D Surface Rendering Window
- 3D Objects Matching (Registration)
- 3D Undercuts Computing
- Up to three panoramic curves for the same series
- Views layout is highly customizable
- ROIs are associated with each transverse section position
- Easy axial curve translation
- JPEG Export including implant templates export

More informations and help on our website.

Dental3DPlugin 5.0.0 new features:

- Full and automatic saving
- Adds a preferences window
- Adds quick access to user-defined drills and drill sleeves
- Improves the 2D outline of the implants
- Improves the design of the drill guide
- Faster access to the drill guide design feature
- New drill guide rendering engine, more stable and faster
- New no-undercut algorithm, more stable and faster
- New implant info window, with quick implant selection et delete
- Adds the possibility to modify implants outside the active transverse section
- Better management of implant collisions during their mesio-distal displacement
- Adds highlighting of the active implant by color change in the panoramic view
- Adds creation of a wax-up by fusion of 3D teeth with the study model
- STL export of the study model, the wax-up, the no-undercuts model
- Adds a second STL import preserving the 3D position of the model if exported with the plugin
- New drill guide design window
- Adds visual informations about the drill guide resolution, memory load, build time
- Adds a palatal depth setting for the palatal supported drill guides
- Sends a notification at the end of the drill guide process if the plugin runs in backgound
- Adds a transverse section position slider to the 3D view
- Opens the 3D view at plugin start
- Adds a splint mode
- Adds a radiographic splint mode, with slots for 4mm and 5mm glass balls markers
- Adds tooltips (help tags) on mouse over every buttons of the plugin
- Fine move of the implants with keyboard arrows
- Restores the axial MPR view tilt
- Automatic view tiling on JPEG export
- Apple Notarization that ovoids Apple security warning on install
- OsiriX MD 11.0.3 compatibility
- Bugfix

Stay informed or share ideas on Facebook or on Twitter at @AlxMartinet.
Or find short tutorials, news and helpful videos about the plugin on our YouTube channel.

Dental3DPlugin is free. Please let us know if you like it!

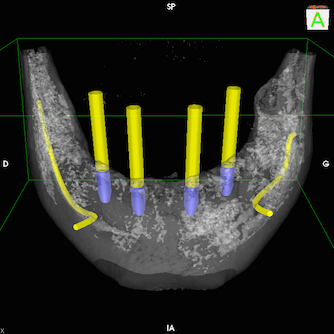

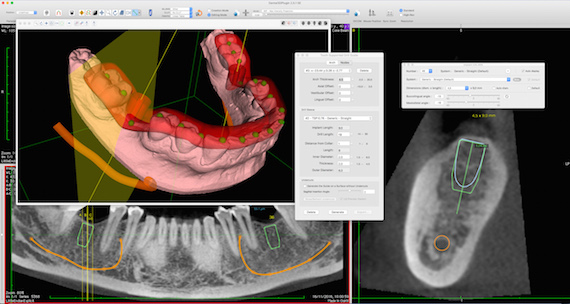

Screenshots:

This plugin is not certified as a commercial medical device for primary diagnosis. Hence, there are no FDA/CE-1 certifications. You can only use this OsiriX plugin as a reviewing, research or teaching software, not for primary diagnostic, used in clinical workflow and/or for patient care.
